  LAMTEC burners control system, a new product of GarmIran.
  Combination of several Useful control systems



  ---



  Modulation control system for burners with 300KW capacity

  • Flame monitoring system and intelligent leak testing control system
  • Air -fuel ratio control system with 2-4 analog output steady
  • Easy to control with symbolic parameters
  • Many optional features
  • Controller (O2/CO) to optimize combustion
  • Power Control
  • Speed ​​Control
  • Dual- Fuel Systems
  • Fieldbus interface

  1. The system combines the burner with adjustable delay sequencing and control parameters can be adjusted for a wide range of combustion conditions.The electronic control system on fuel-air ratio, can support three outputs actuator, and an optional analog output.
  2. LAMTEC control system can be used on all burners. Sensors and safety chains burner, fuel gas and air pressure sensors, liquid fuel and gas pressure ... are connected directly to the control system. This feature reduce the cost of using multiple control boxes and complex wiring.
  3. Leak testing control system can be used before the spark or the burner Shut-off.
  4. The combination defined curves can be optimized during running through O2/CO optional controller. This optimization ensures that the burner always acts in the best possible performance.
  5. Comprehensive combustion control system, LAMTEC, has several advantages during establishing, including wiring standardization between control system and burner.
  6. LAMTEC systems are configurable with or without pilot light according to EN676. Launched without pre-aeration with gas fuel is possible according to EN676.
  7. In LAMTEC systems messages and errors are displayed on the user interface. Setting the blending curves and the specific system configuration can be performed by user interface menus.

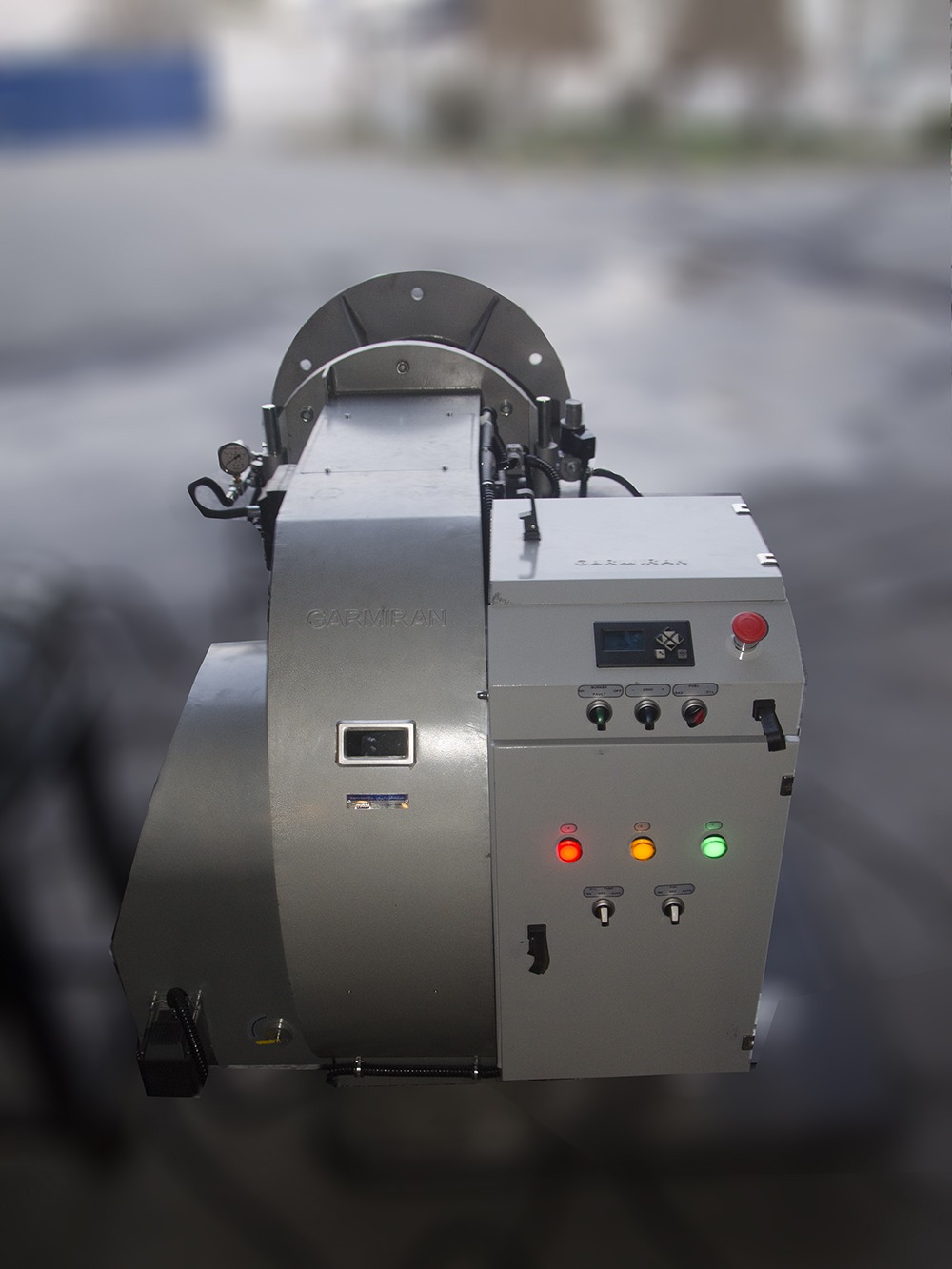

  The first GarmIran burner with LAMTEC control system, tested in the first half of November with efforts of GarmIran hardworking engineers.



  See this movie
•
